Products
Intelligent Rack Power Distribution(rPDU)
Powertek rPDU (Rack Power Distribution Unit) delivers accurate metering, secure outlet locking, and scalable power management for data centers, telecom rooms, and AI high-density server racks.
From basic power distribution to intelligent architectures with per-outlet metering, remote switching, and environmental monitoring, the Powertek range is manufactured 100% Build-to-Order — customized to your rack requirements with no minimum order quantity.
Its patented IEX locking outlets (4-in-1 compatible design supporting C13/C15/C19/C21) and Hot Swap Controller allow outlet retention and controller maintenance without interrupting power supply, ensuring high availability and long-term operational stability.
To strengthen supply chain resilience and lead-time reliability, Powertek's metered and intelligent series (POMS／POM／POS／PIM／PIML／PM) are planned for gradual introduction on Taiwan manufacturing lines, offering customers greater flexibility in origin selection and localized warranty support.

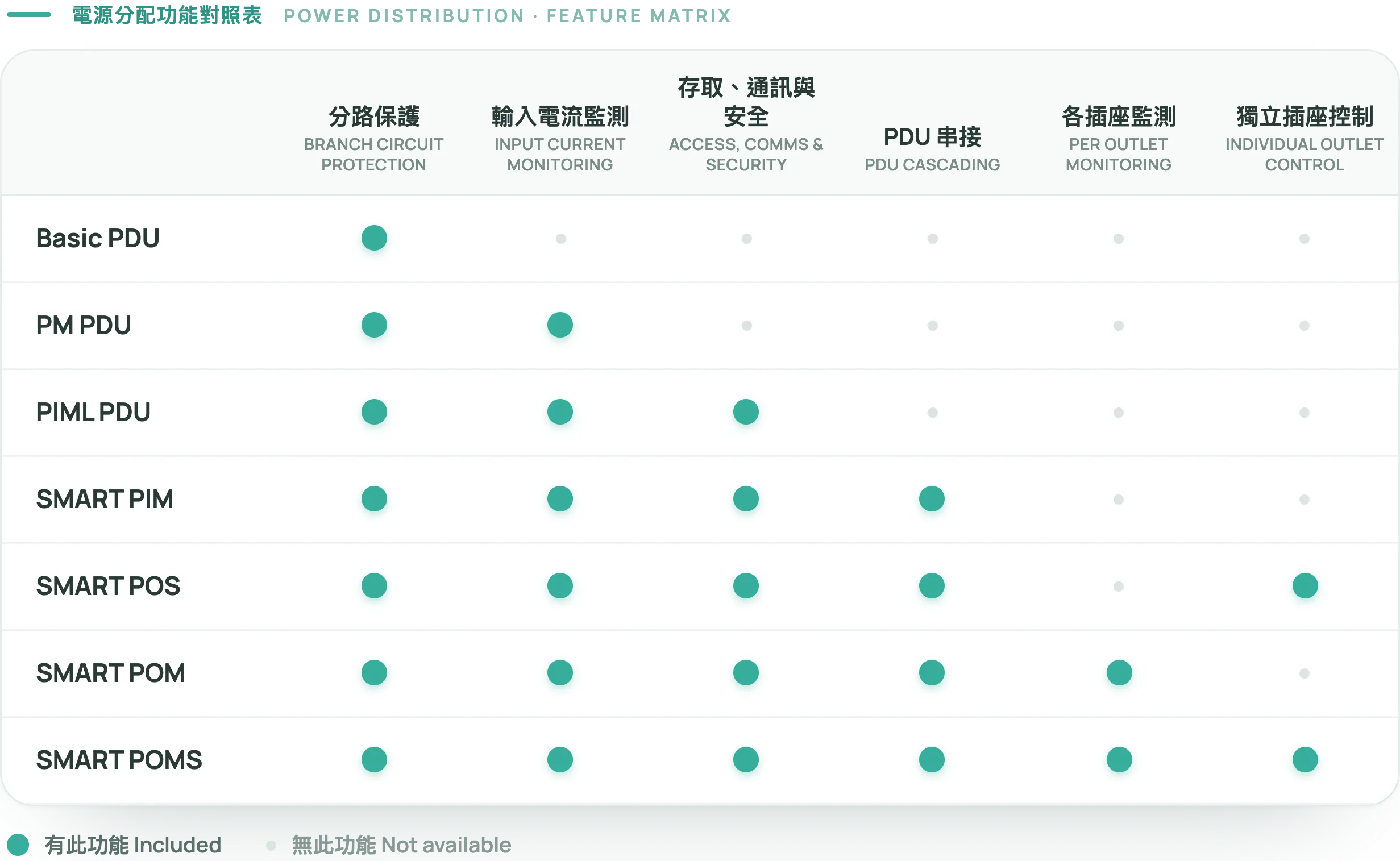

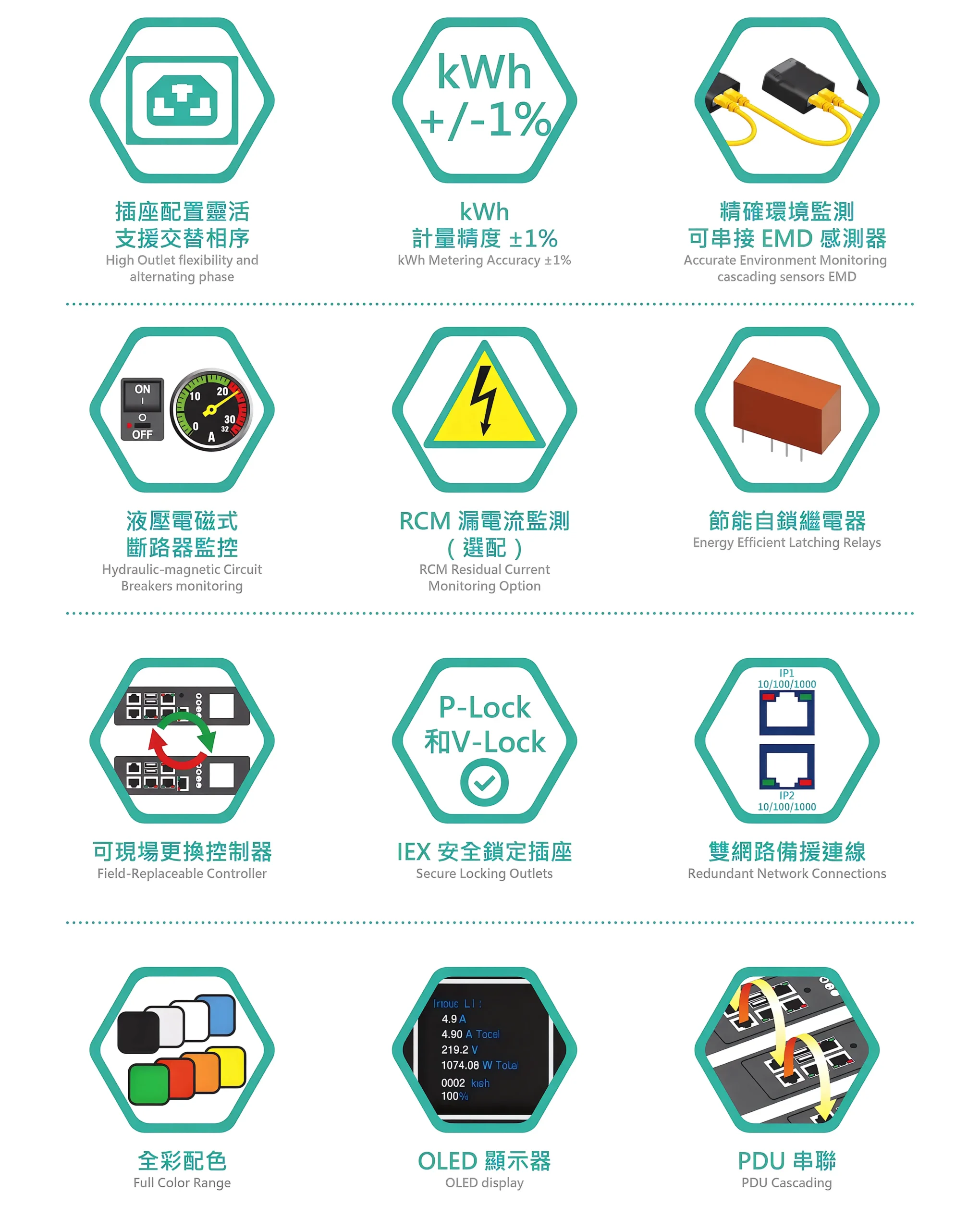

Smart POMS
Full-Function: Per Outlet Monitoring + Switching
Combines per-outlet energy metering with per-outlet remote switching. Supports individual outlet or group On/Off control, power-on delay, and sequential startup, with OLED real-time display and dual redundant network connections (IP1/IP2).
Applications
Ideal for data centers and mission-critical cabinets requiring per-outlet precision metering combined with remote switching control.
The above are common application examples. If you need a PDU solution with per-outlet metering and remote power control but are unsure which model best fits your needs, please contact us — we will recommend the most suitable Smart POMS rPDU configuration.
Key Benefits
- Per-outlet kWh metering, accuracy ±1%
- Individual outlet or group remote On/Off control
- Power-on delay and sequential startup supported
- Per-outlet LED status indicator
- IEX patented locking outlets, 4-in-1 compatible design (C13/C15/C19/C21), compatible with C13/C19
- OLED display for real-time power data
- Dual redundant network connections (IP1/IP2, 10/100/1000)
- EMD environmental sensor cascade supported

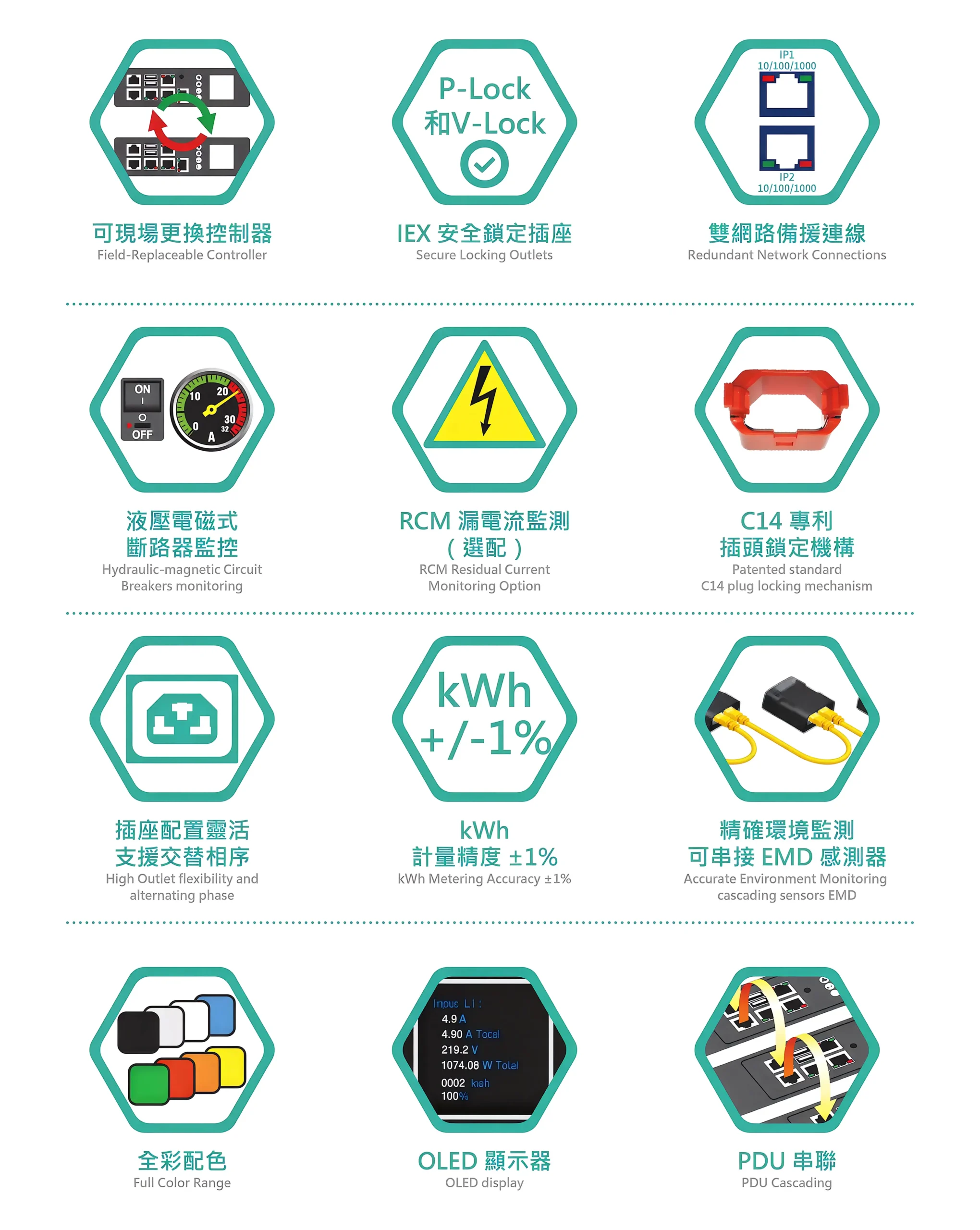

Smart POM
Per Outlet Monitoring
Provides inlet and per-outlet energy metering (kWh, W, VA, VAR, A, V, PF, Hz) with OLED display and PDU cascading (up to 16 units, total cable length not exceeding 45 m), plus dual redundant network connections.
Applications
Ideal for data centers and enterprise server rooms requiring visibility into per-outlet energy consumption for energy management purposes.
The above are common application examples. If you need a PDU solution with per-outlet precision metering, please contact us — we will recommend the most suitable Smart POM rPDU configuration.
Key Benefits
- Inlet and per-outlet energy metering, ±1% kWh accuracy
- OLED display for real-time power data
- PDU cascading supported (up to 16 units on a single IP, total cable ≤ 45 m)
- Dual redundant network connections (IP1/IP2, 10/100/1000)
- IEX patented locking outlets, 4-in-1 compatible design (C13/C15/C19/C21), compatible with C13/C19
- EMD environmental sensor cascade supported
Smart POS
Per Outlet Switching
Supports remote per-outlet or group On/Off switching with power-on delay and sequential startup. Equipped with individual per-outlet LED status indicators for quick identification of device power states.
Applications
Ideal for telecom rooms and enterprise server cabinets requiring remote power switching management.
The above are common application examples. If you need a PDU solution with remote power switching, please contact us — we will recommend the most suitable Smart POS rPDU configuration.
Key Benefits
- Individual outlet or group remote On/Off control
- Power-on delay and sequential startup supported
- Per-outlet LED status indicator
- IEX patented locking outlets, 4-in-1 compatible design (C13/C15/C19/C21), compatible with C13/C19
- OLED display for real-time power data
- Dual redundant network connections (IP1/IP2, 10/100/1000)
- EMD environmental sensor cascade supported

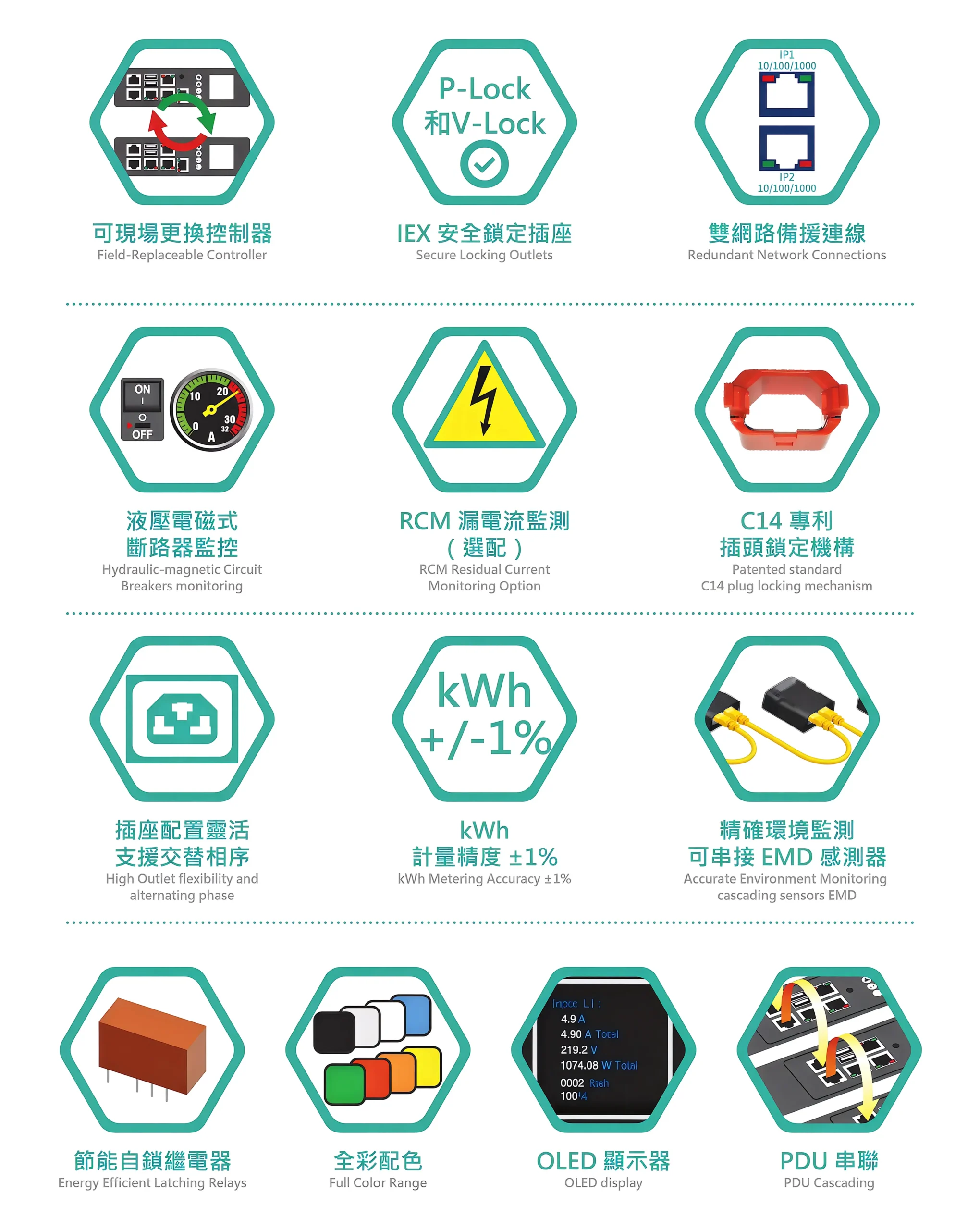

Smart PIM
Power Input Monitoring
Provides inlet energy metering (kWh, W, VA, VAR, A, V, PF, Hz), 3-phase balance indication, and residual current monitoring (optional). Supports EMD environmental sensor cascade for historical energy logging and customizable alarm thresholds.
Applications
Ideal for telecom rooms and enterprise core server rooms requiring comprehensive inlet energy monitoring and environmental sensor integration.
The above are common application examples. If you need a PDU solution with full inlet metering and environmental monitoring, please contact us — we will recommend the most suitable Smart PIM rPDU configuration.
Key Benefits
- Full inlet metering: kWh, W, VA, VAR, A, V, PF, Hz
- 3-phase balance indication
- Residual current monitoring (optional)
- Historical data logging with graphical display, customizable alarm thresholds
- EMD environmental sensor cascade supported
- OLED display, dual redundant network connections
- IEX patented locking outlets, 4-in-1 compatible design (C13/C15/C19/C21), compatible with C13/C19

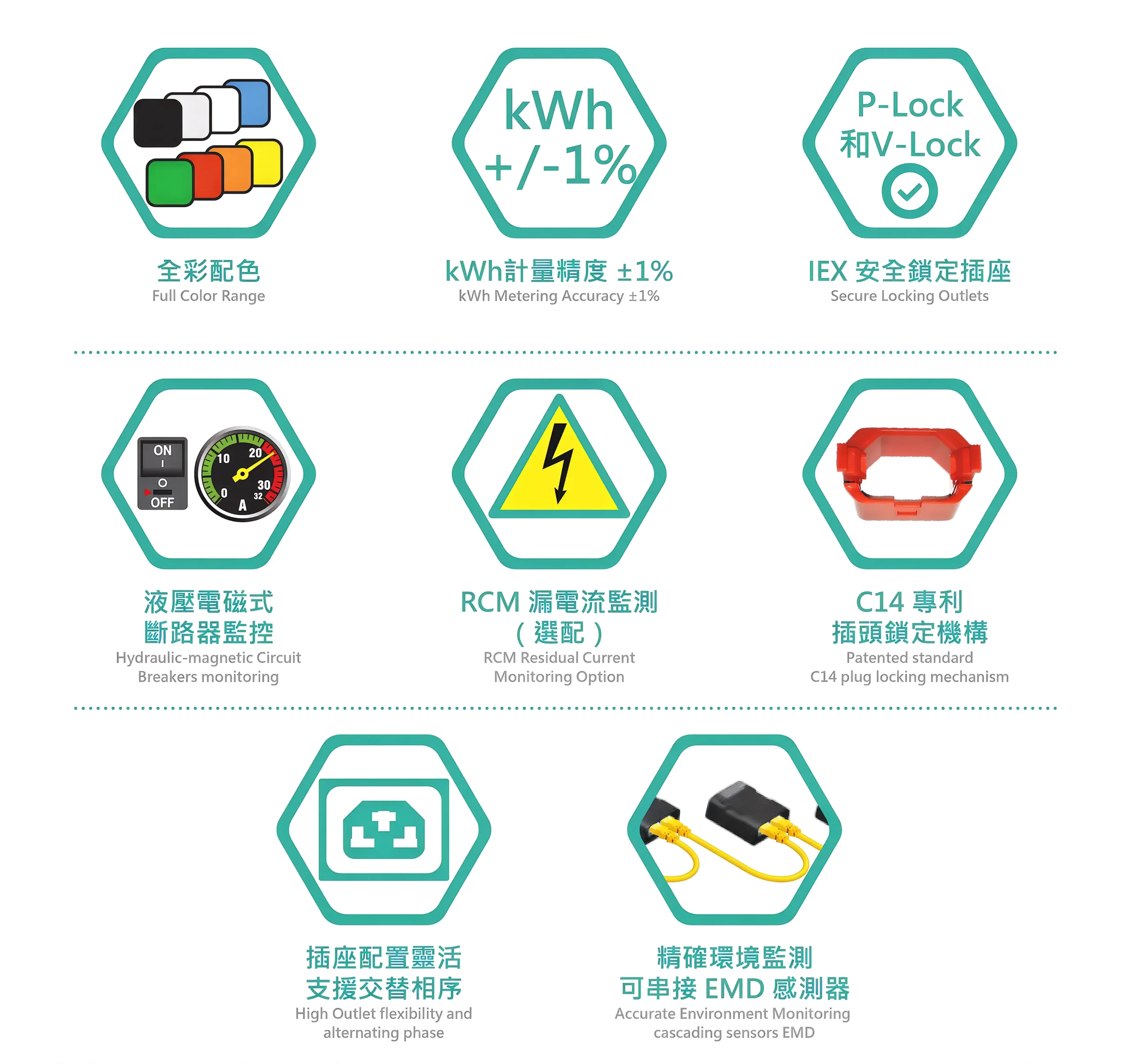

PIML
Power Input Monitoring with LAN
Provides inlet energy metering (kWh, W, VA, VAR, A, V, PF, Hz), 3-phase balance indication, and residual current monitoring (optional), with historical data logging, customizable alarm thresholds, and EMD environmental sensor cascade.
Applications
Ideal for small-to-medium server rooms and branch offices requiring basic energy monitoring and environmental sensing.
The above are common application examples. If you need a PDU solution with monitoring and alerting capabilities, please contact us — we will recommend the most suitable PIML rPDU configuration.
Key Benefits
- Inlet metering: kWh, W, VA, VAR, A, V, PF, Hz
- 3-phase balance indication
- Residual current monitoring (optional)
- Historical data logging with graphical display, customizable alarm thresholds
- EMD environmental sensor cascade supported
- IEX patented locking outlets, 4-in-1 compatible design (C13/C15/C19/C21)

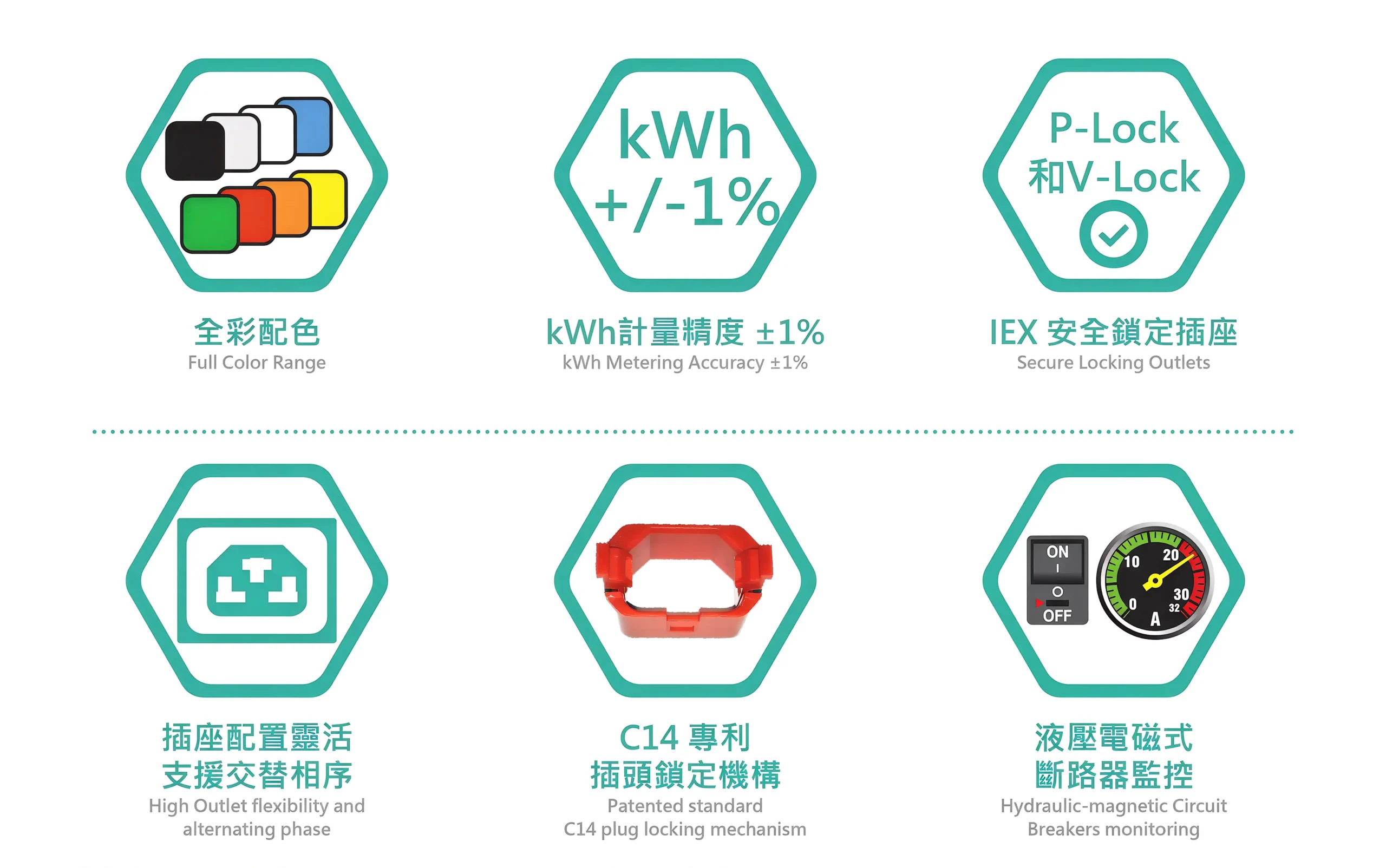

PM
Power Monitoring
Provides inlet kWh energy metering at ±1% accuracy, with power measurements (W, VA), electrical parameter readings (A, V, PF), and circuit breaker monitoring.
Applications
Ideal for server room environments requiring basic energy metering, such as internal power consumption tracking or energy audit compliance.
The above are common application examples. If you need a basic energy metering PDU solution, please contact us — we will recommend the most suitable PM rPDU configuration.
Key Benefits
- Inlet kWh energy metering, ±1% accuracy
- Power measurements (W, VA) and electrical parameter readings (A, V, PF)
- Circuit breaker monitoring
- Hydraulic-magnetic circuit breakers, 10KA Icn
- IEX patented locking outlets, 4-in-1 compatible design (C13/C15/C19/C21), compatible with C13/C19
- Full color range available

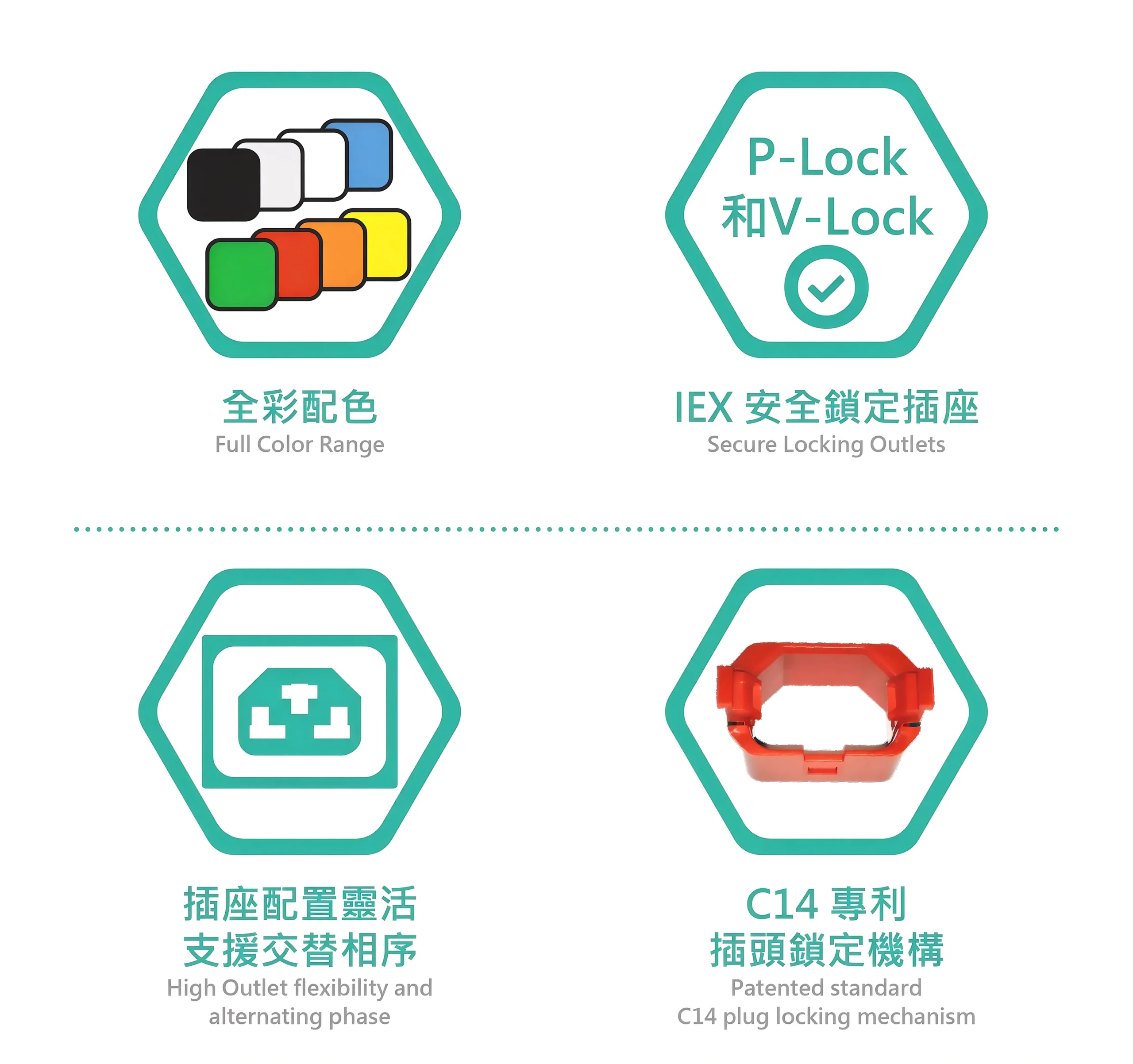

Basic
Basic -Power Distribution
Pure power distribution design with low-profile hydraulic-magnetic circuit breakers (10KA Icn) and · IEX patented locking outlets, 4-in-1 compatible design (C13/C15/C19/C21), providing a stable and reliable foundation for rack power distribution.
Applications
Ideal for traditional server room environments where power monitoring is not required and stable power distribution is the priority.
The above are common application examples. If you need a basic PDU solution for pure power distribution, please contact us — we will recommend the most suitable Basic rPDU configuration.
Key Benefits
- Hydraulic-magnetic circuit breakers, rated short-circuit breaking capacity 10kA (Icn)
- IEX patented locking outlets, 4-in-1 compatible design (C13/C15/C19/C21), compatible with C13/C19
- Full color range available
- Flexible outlet configuration with alternating phase support
- Ultra-light aluminium profile with fully adjustable mounting options
